CASE STUDY BRIEF:

Create a 7 x 12 metre speaker wall to be assembled on stage in less than twelve minutes for an Ed Sheeran and Rudimental performance.

Read More
Play Video

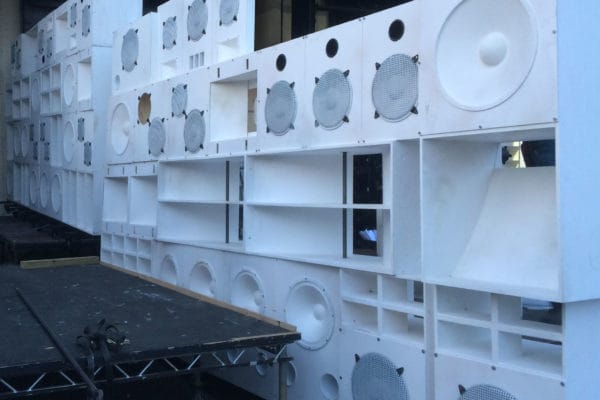

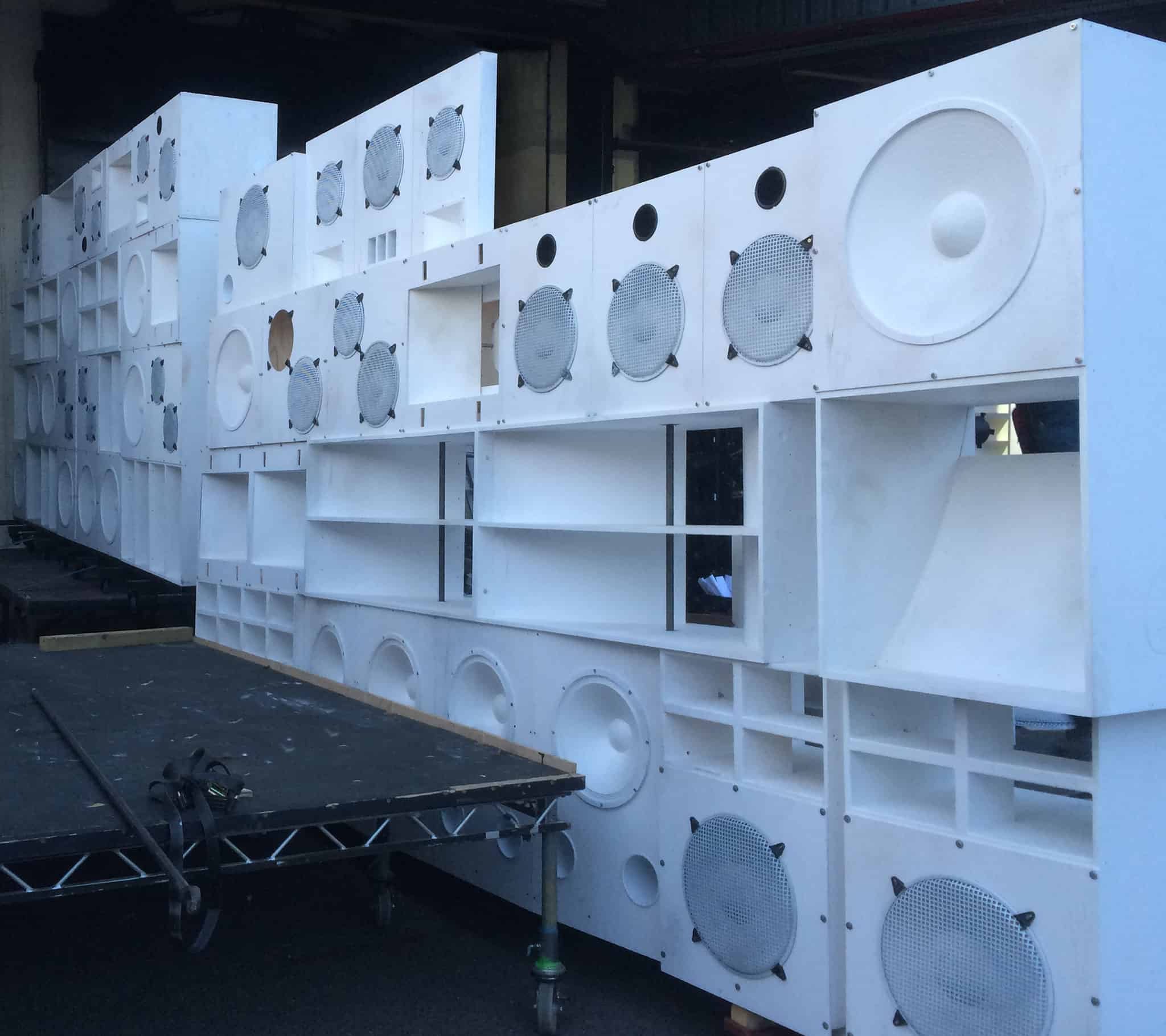

"After transporting the set to the studio in London, the speaker stacks were assembled in sections outside."

OUR SOLUTION:

We were given one week to produce this Es Devlin concept, so immediately began the design and fabrication process, creating and assembling CNC cut components including giant custom-made speaker cones.

The set was built and painted in-house in three days, ready for overnight transport to Fountain Studios in London.

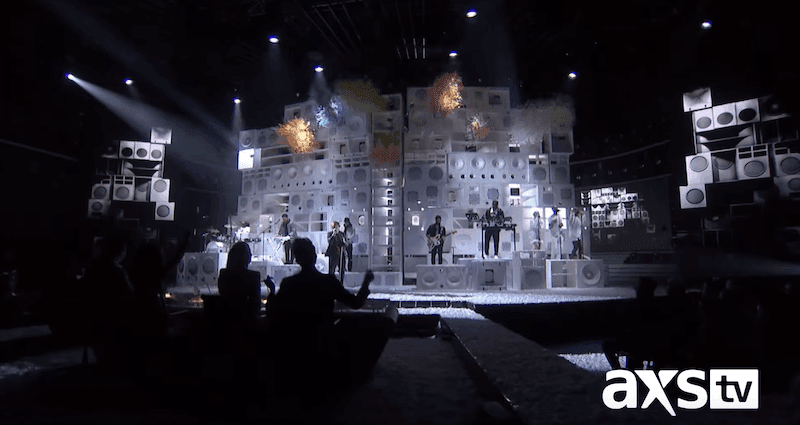

The speaker stacks were assembled in sections outside and wheeled on-stage, with the upper sections hoisted up and the lower sections wheeled in beneath. Confetti cannons were also fitted for use during the performance. As soon as the recording finished, the set was broken down and removed off-stage in eight minutes.

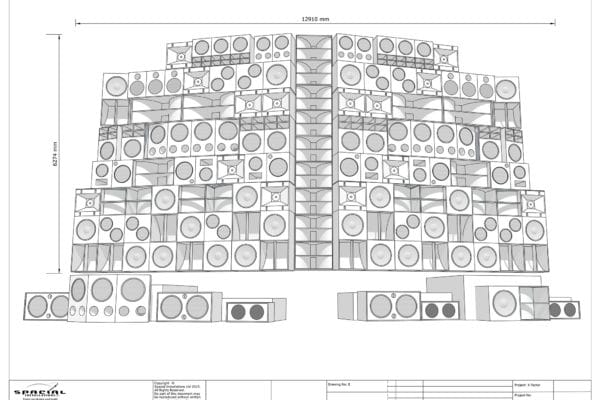

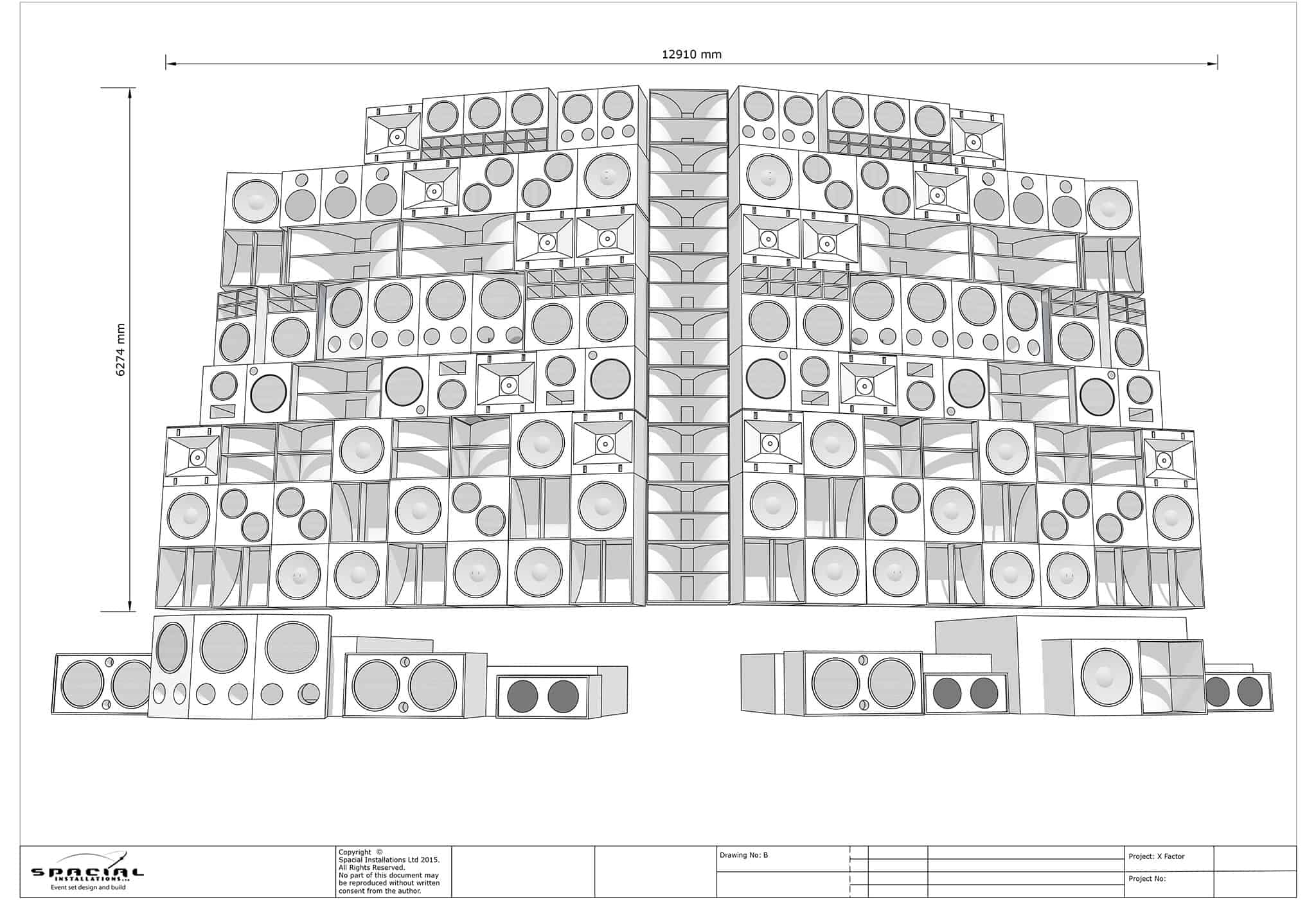

X-Factor-2015-B

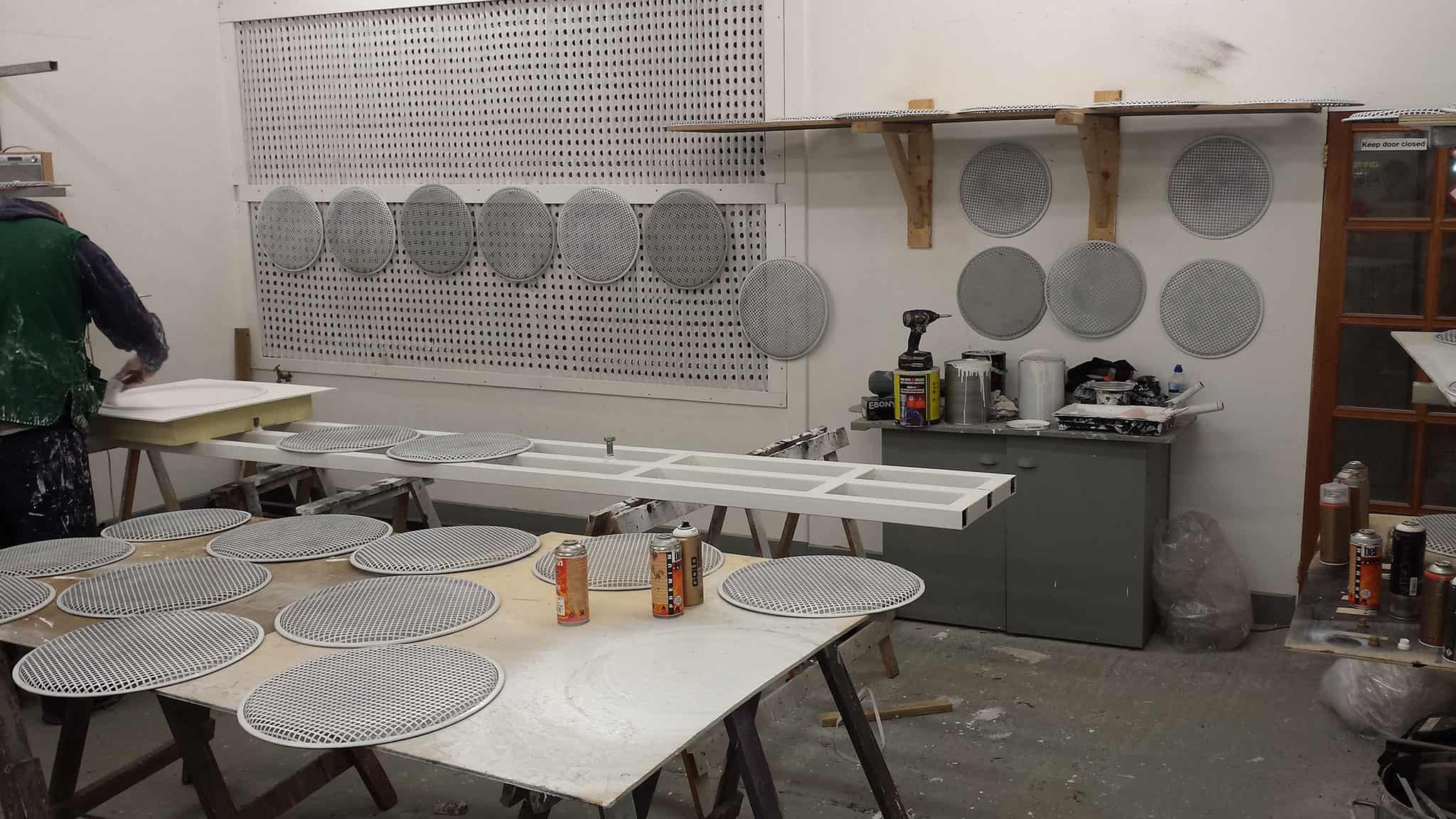

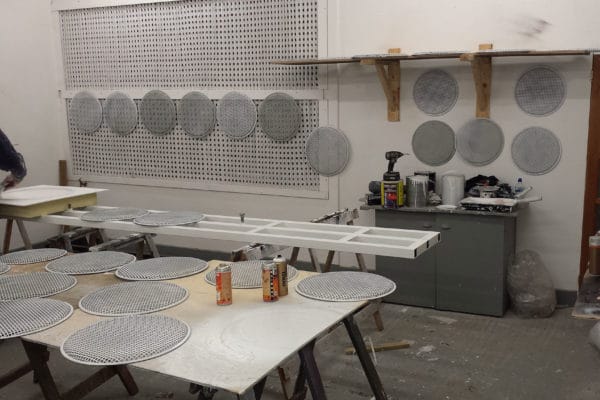

Workshop Painting 1

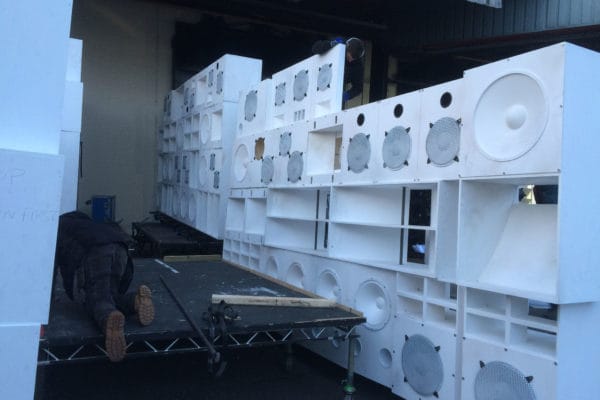

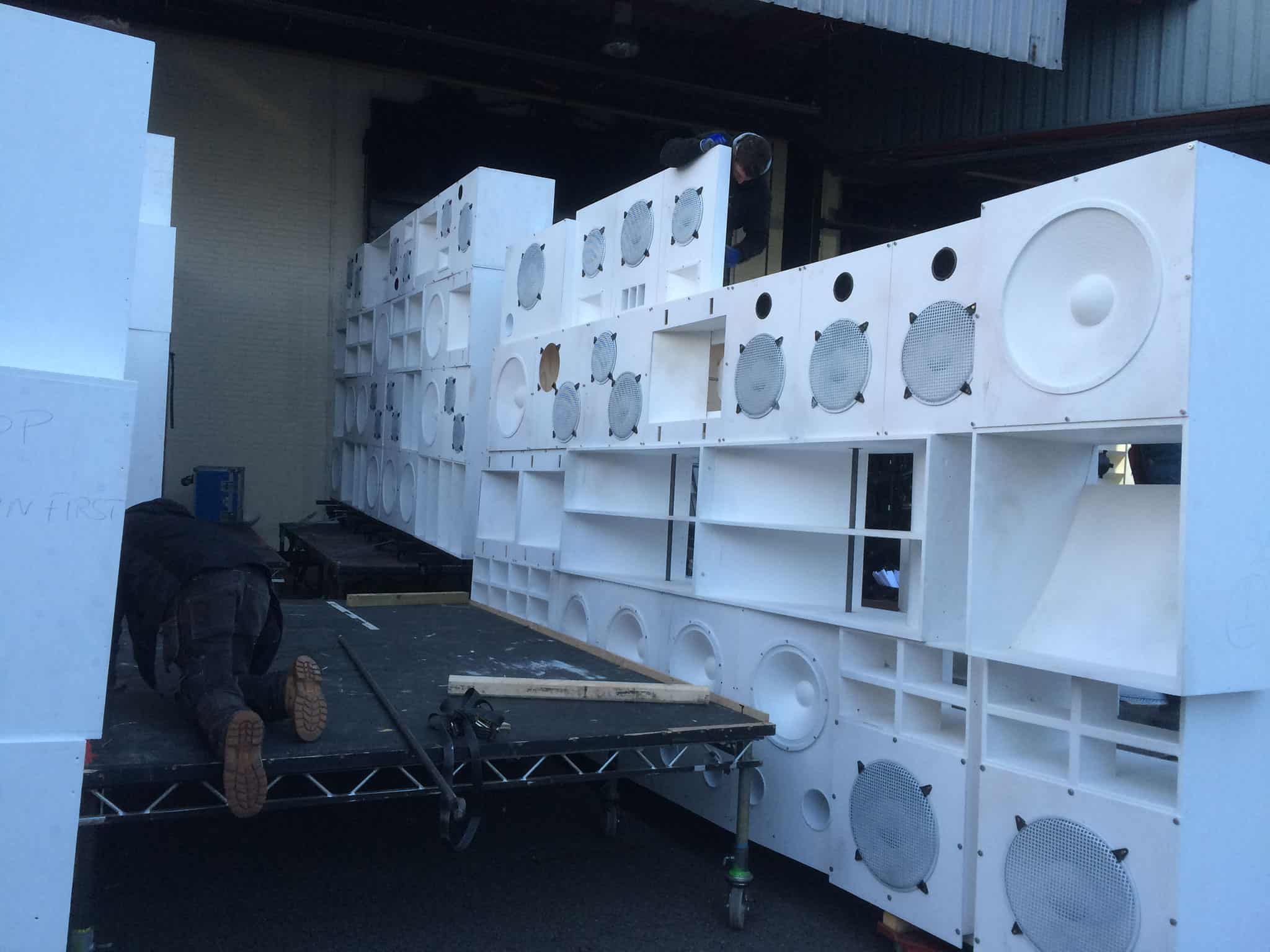

Prepping for stage 2

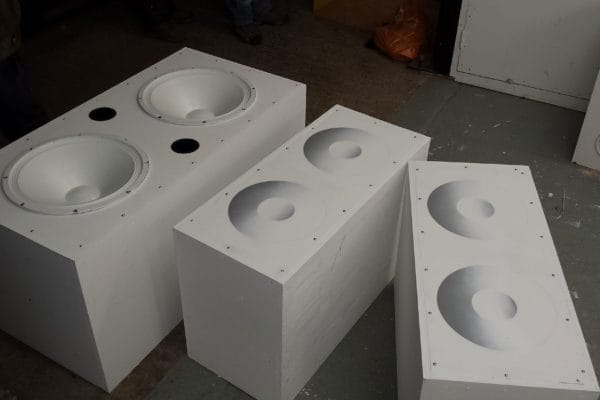

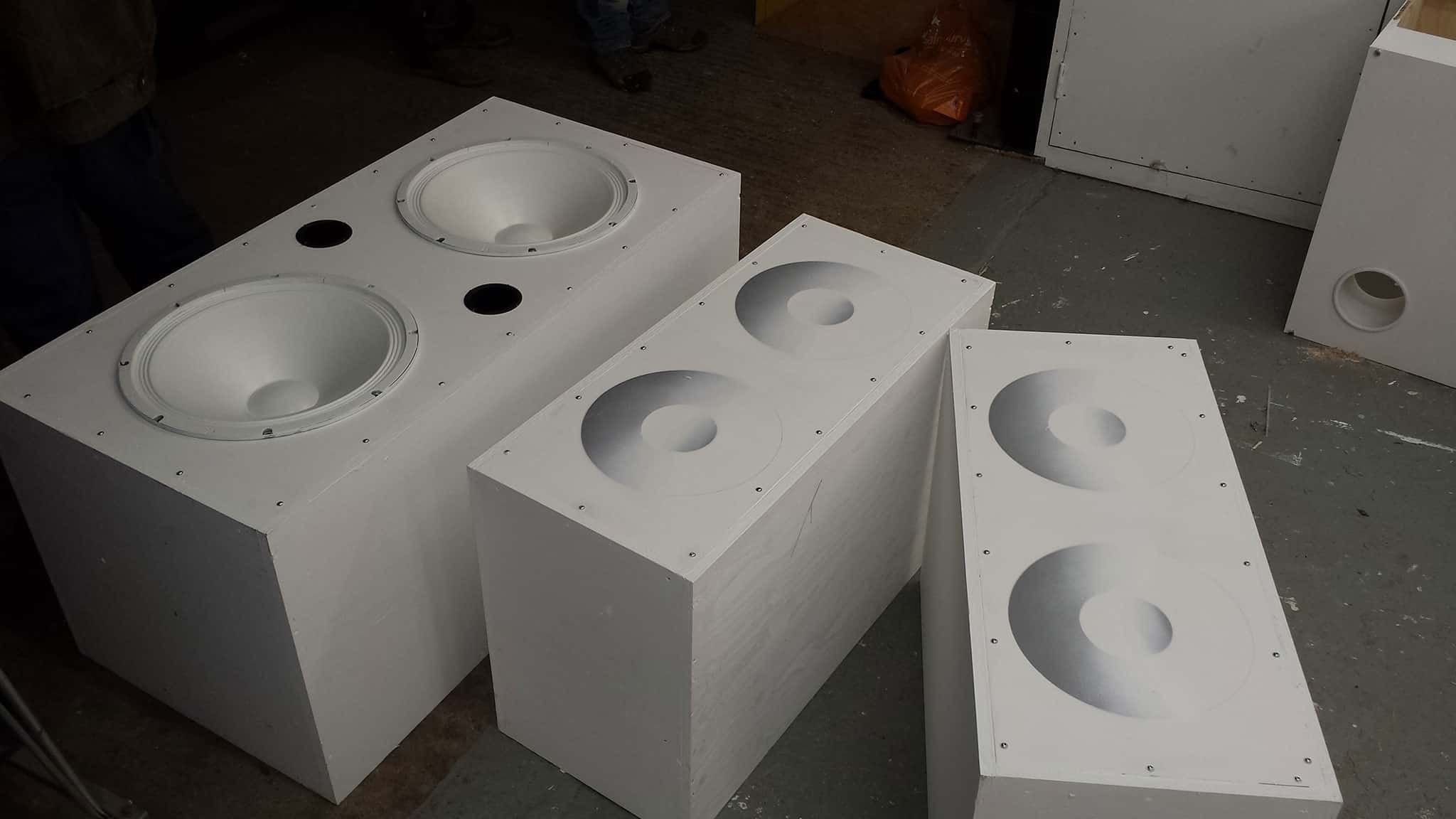

Painted Cones

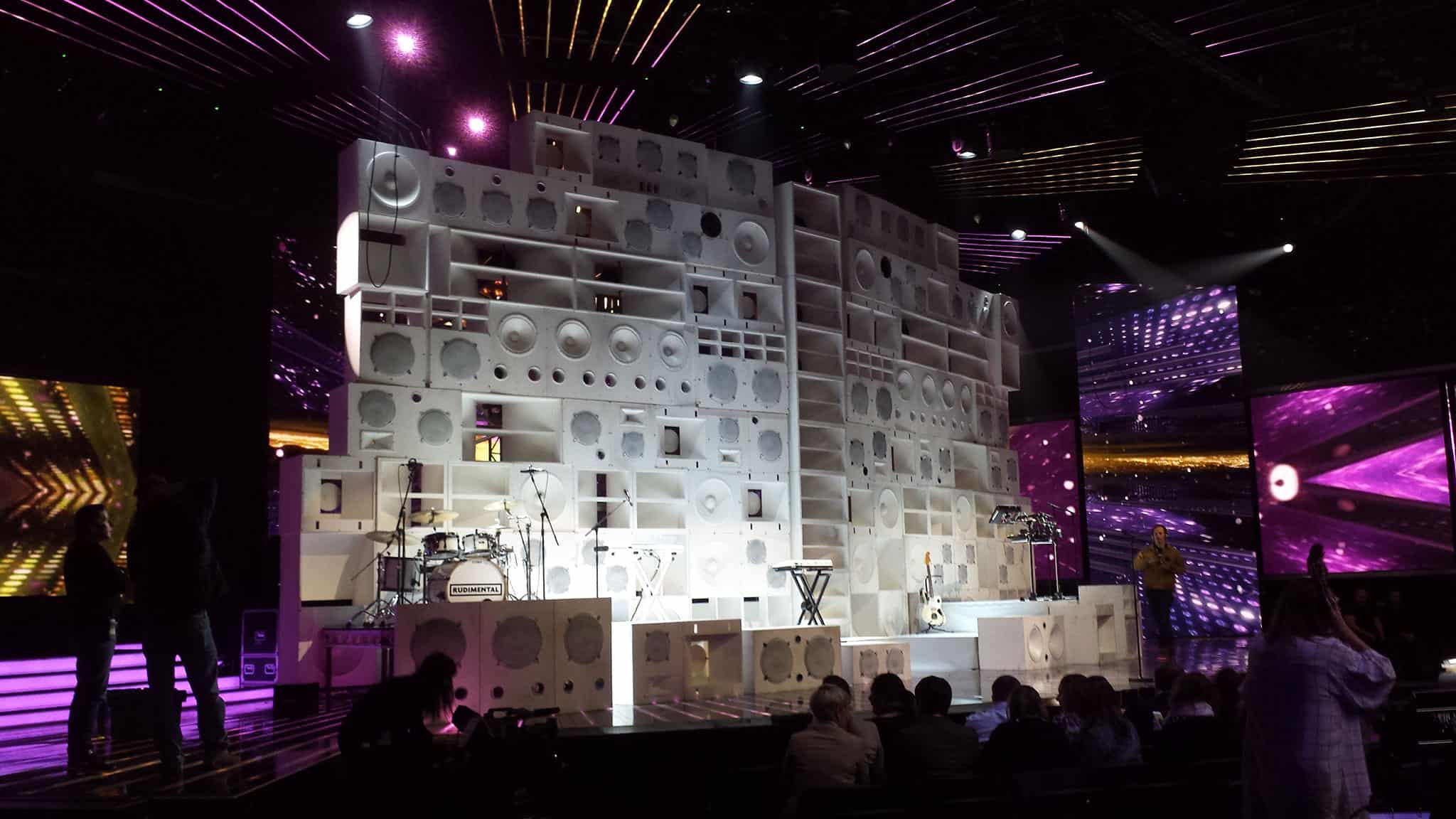

On-Stage-2

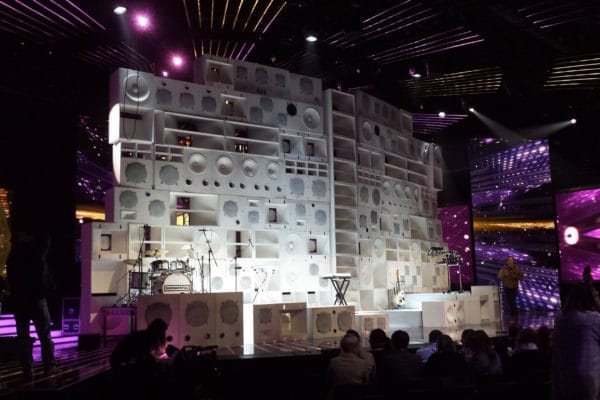

On Stage 2

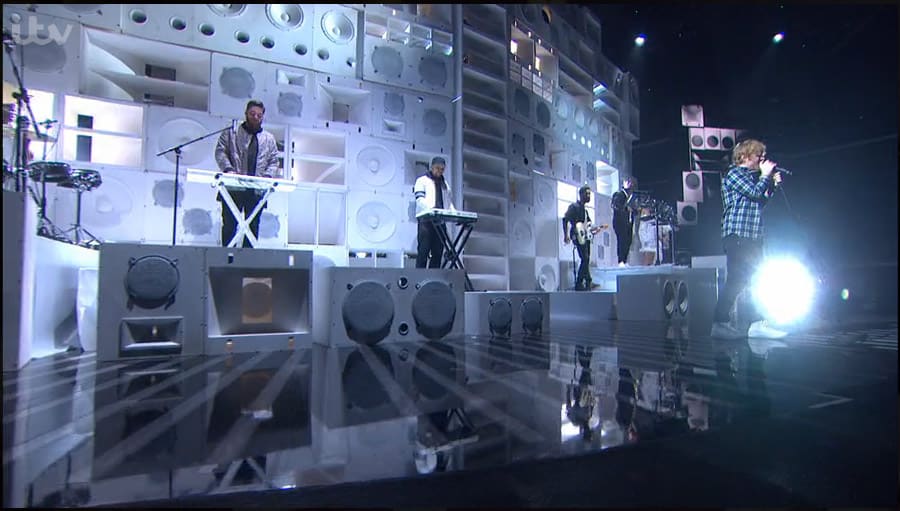

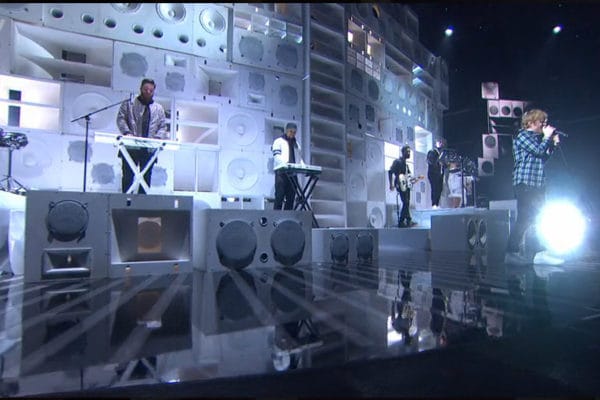

EdRudiXfactorScreenShot02

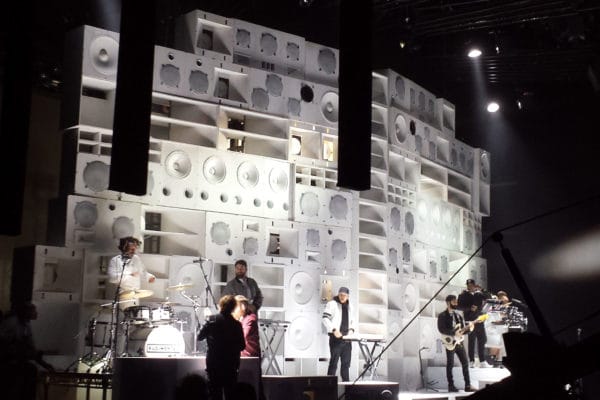

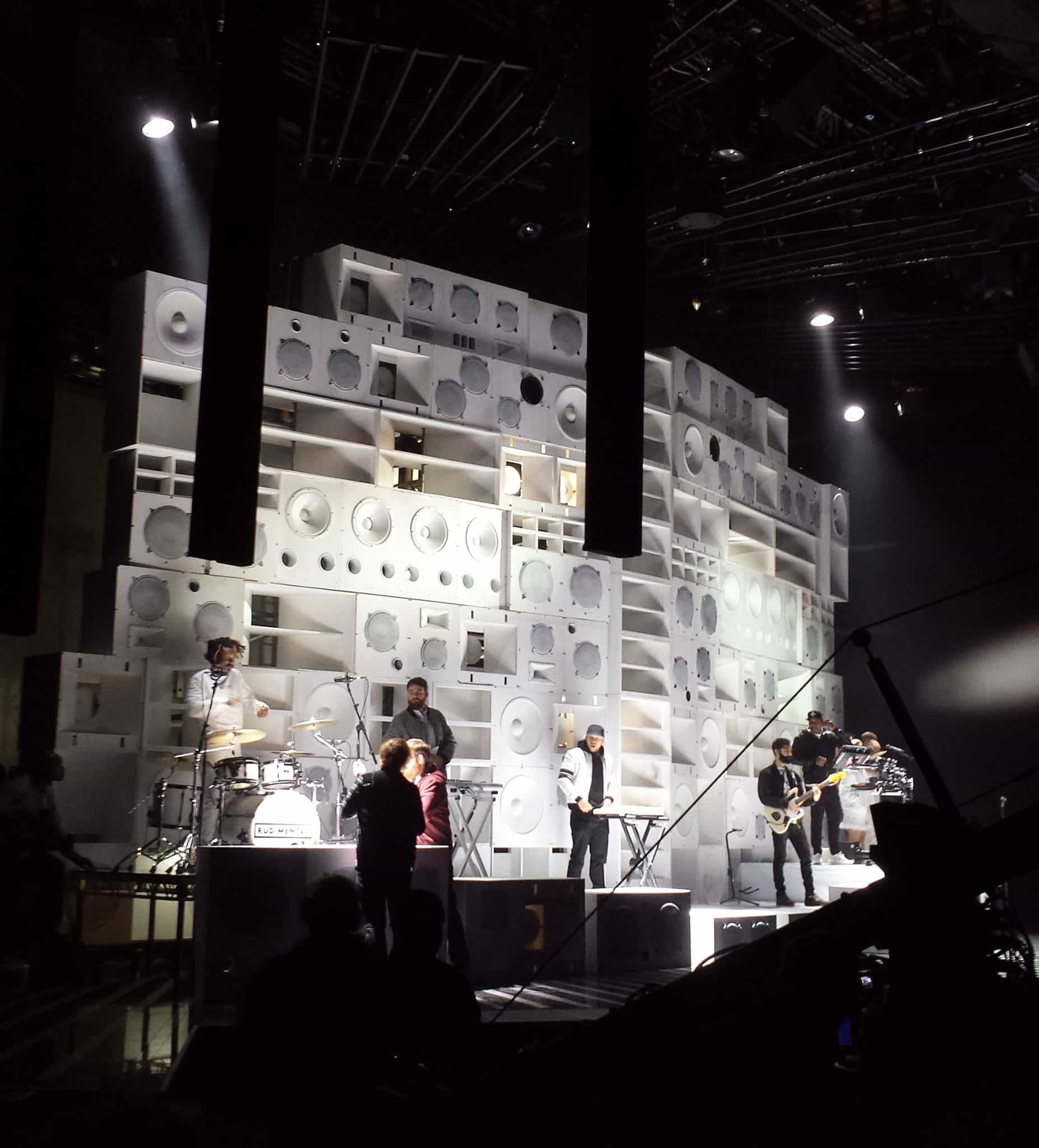

On Stage 1

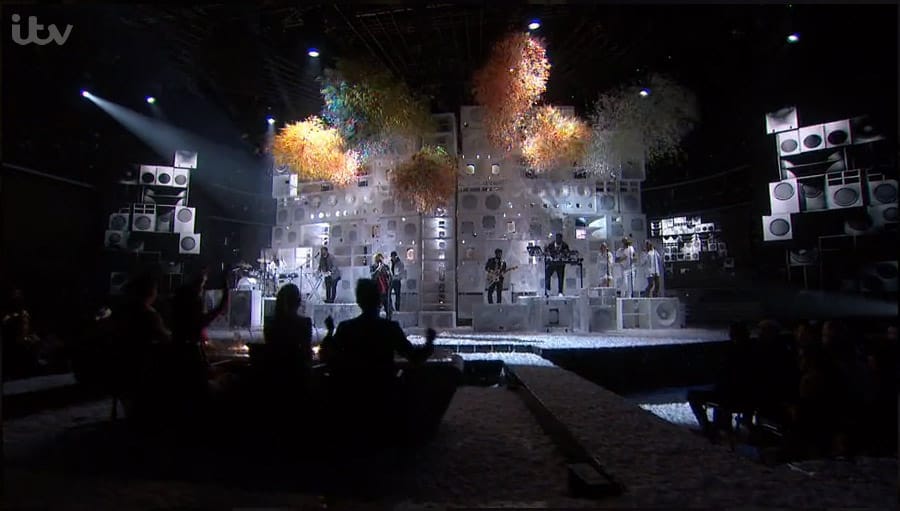

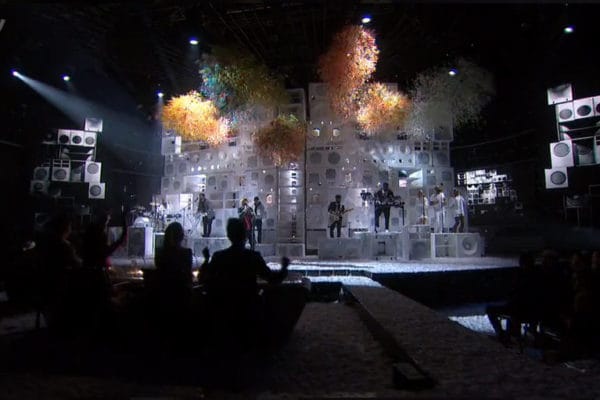

EdRudiXfactorScreenShot08

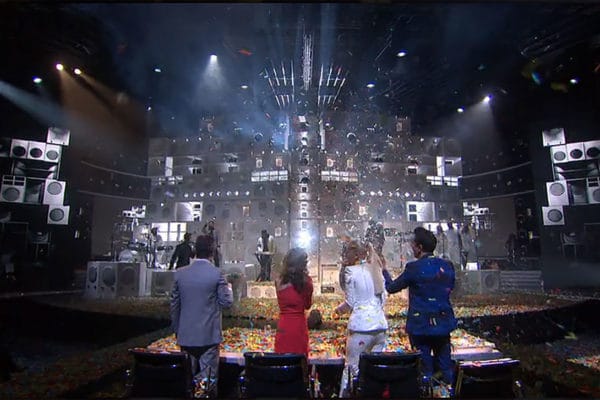

Untitled-1

Creative Count

need better stats for this project – or remove this section

1
week

…from brief to installation

1
Speaker Cabinets

… built and transported to London

1
minutes

… to remove from stage

Spacial Installations Projects at

X-Factor

Labrinth Glass Rain Wall – X-Factor

Stage backdrop for Labrinth’s performance of Jealous on an X-Factor live results show. We were asked to build a ten metre long glass wall with a built-in watering system to visually simulate rain. The job took just two weeks from receiving the brief to installation, and required an engineered solution…

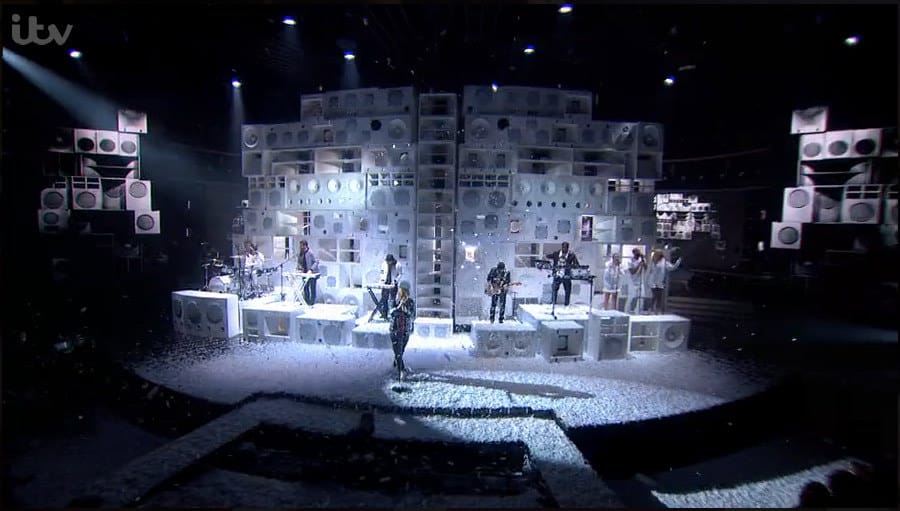

X-Factor – Ed Sheeran & Rudimental Stage

We were given a week and asked to create this giant speaker stack backdrop for an Ed Sheeran and Rudimental X-Factor performance. We built and painted all of the required cabinets in three days, and transported them to Fountain studios in London for the show. The speaker stacks were then…

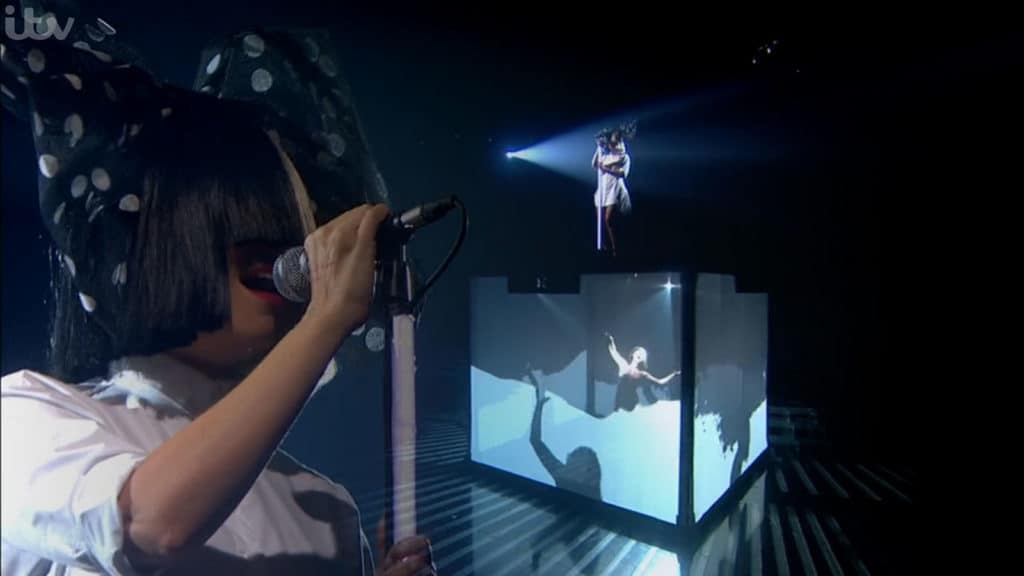

X-Factor – Sia Cube Stage

Steel frame cube with projector brackets built for Sia’s live X-Factor performance of ‘Alive’. The stage has voile covered sides which pick up the projection, and also allow the dancer inside to be seen. Spacial designed and built the frame, liaising with the production and projection teams in a very…

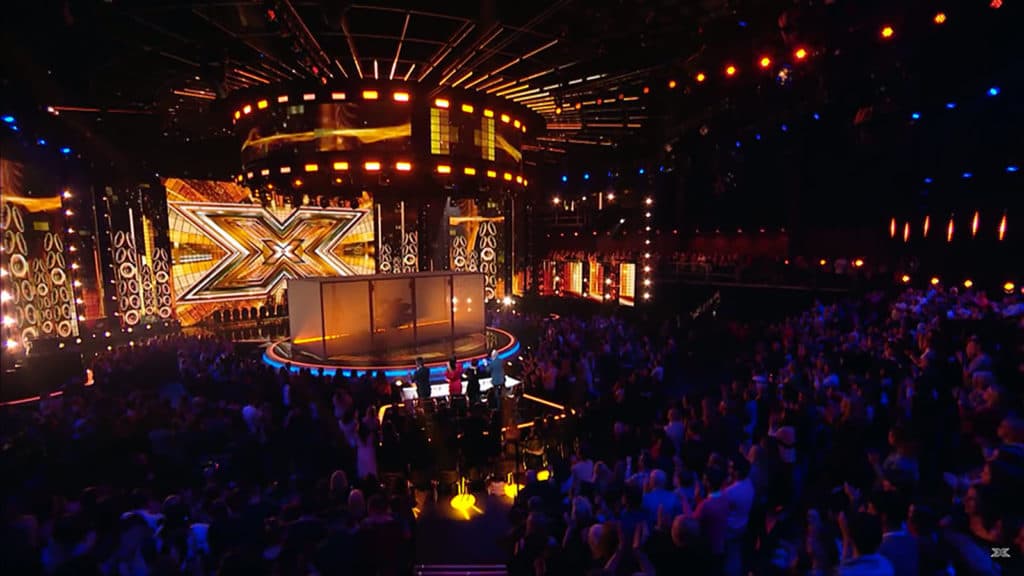

X-Factor – Tokio Myers Projection Stage
